8.4V 35kg 45kg.cm 76g 0.09S/60° Coreless Motor High Torque Servo Steel Gear All CNC Case Waterproof For Helicopter RC Car Model

Specifications:
Model:CLS35
Ball Bearing:  2BB
Diver type:  Mos Drive
Motor Type:  Coreless motor
Potentiometer Type:  Direct Drive
Amplifier Type:  Digital Control
Dead band width:  2 usec
Gear Material:  Metal Gear
Case Material:  Aluminum Case
Operation Voltage Range:  4.8V ~8.4V
Operation Temperature Range:  -20C°~ +60C°
180°/270° Servo :Control Angle
360° Servo :Rotate Continuously
Direction:  Re-clock wise/ Pulse Travel 500→2500 μsec
Control System:  PWM Control (1500usec in the central point)
Circle:  ＞100 milion times without load
Operation Travel:  60°±1
Limit angle:  180° 270° 360°± 1
Dimensions:  40x20x40.5mm
Weight:  78g

Standing Torque:
0.09sec/60°,30kg-cm-@6.0V;
0.08sec/60°,33.5kg-cm-@7.4V
0.07sec/60°,37kg-cm-@8.4V

Connector Wire Length: 300MM

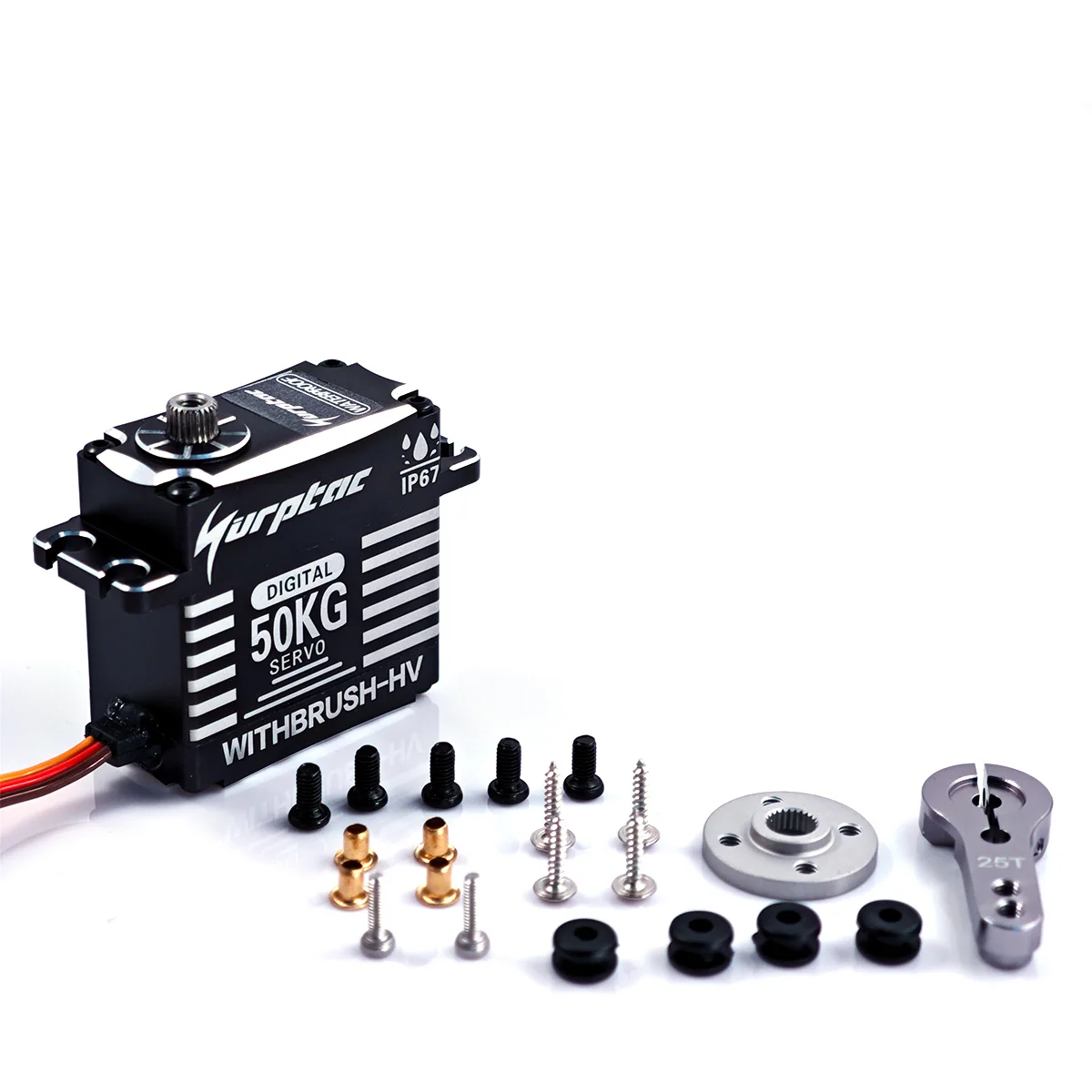

Package included:
1 x Servo
1 x Servo Accessories

Model:CLS45
Ball Bearing:  2BB
Diver type:  Mos Drive
Motor Type:  Coreless motor
Potentiometer Type:  Direct Drive
Amplifier Type:  Digital Control
Dead band width:  2 usec
Gear Material:  Metal Gear
Case Material:  Aluminum Case
Operation Voltage Range:  4.8V ~8.4V
Operation Temperature Range:  -20C°~ +60C°
180°/270° Servo :Control Angle
360° Servo :Rotate Continuously
Direction:  Re-clock wise/ Pulse Travel 500→2500 μsec
Control System:  PWM Control (1500usec in the central point)
Circle:  ＞100 milion times without load
Operation Travel:  60°±1
Limit angle:  180° 270° 360°± 1
Dimensions:  40x20x40.5mm
Weight:  78g

Standing Torque:
0.12sec/60°,39.5kg-cm-@6.0V;
0.11sec/60°,43.5kg-cm-@7.4V
0.09sec/60°,48kg-cm-@8.4V

Connector Wire Length: 300MM

Package included:
1 x Servo
1 x Servo Accessories

Model:CLS50
Ball Bearing:  2BB
Diver type:  Mos Drive
Motor Type:  Coreless motor
Potentiometer Type:  Direct Drive
Amplifier Type:  Digital Control
Dead band width:  2 usec
Gear Material:  Metal Gear
Case Material:  Aluminum Case
Operation Voltage Range:  4.8V ~8.4V
Operation Temperature Range:  -20C°~ +60C°
180°/270° Servo :Control Angle
360° Servo :Rotate Continuously
Direction:  Re-clock wise/ Pulse Travel 500→2500 μsec
Control System:  PWM Control (1500usec in the central point)
Circle:  ＞100 milion times without load
Operation Travel:  60°±1
Limit angle:  180° 270° 360°± 1
Dimensions:  40x20x40.5mm
Weight:  78g

Standing Torque:
0.13sec/60°,45kg-cm-@6.0V;
0.12sec/60°,49kg-cm-@7.4V
0.11sec/60°,54kg-cm-@8.4V

Connector Wire Length: 300MM

Package included:
1 x Servo
1 x Servo Accessories
